Product Description
BUILD TIME
D1 Model 7-14 Days
D2 Model 7-14 Days
D4 Model 7-14 Days

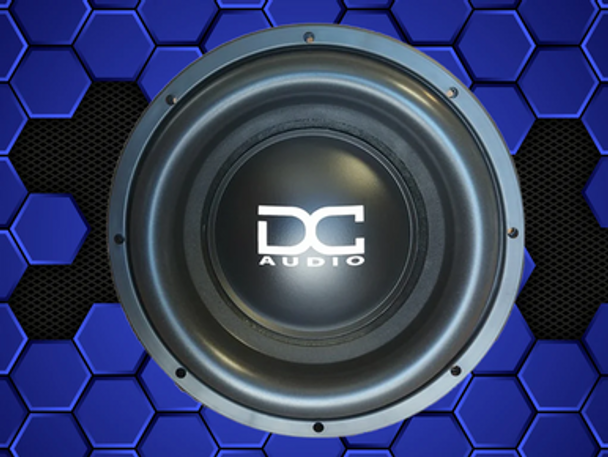

DC Audio Level 3 Subwoofer
Model: m3
Sizes Available: 10,12,15 and 18 Inch Models
Power Handling: 1000 Watts RMS 2000 Watts Peak
Voice Coil Options: Dual 1, Dual 2 and Dual 4 ohm versions
Subwoofer Description
The level 3 sub is the ultimate daily driver sub. It puts out the low lows with lots of output designed for sealed or ported enclosures.
The Level 3 sub is a triple stacked FEA optimized motor wrapped in a magnet boot, chrome top plate and T yoke. The deep gap offers more X-max for a total of 23mm.
This sub also comes with dual upgraded progressive spiders, cone, surround, 3" voice coil, cast basket, push terminals, and upgraded sewn down lead wire. We give the Level 3 a power rating of 1000w RMS/2000w peak.
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Dual 8” OD semi cup progressive roll spider
- Sewn Down HD Lead Wires
- Extra heavy duty interweaved tinsel lead wire sewn to spider
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber motor boot
- Chrome spring loaded push terminals
- Dual 4 ohm 3” Hi-temp Aluminum voice coil wound on black anodized voice coil former
T/S Parameters
| M3 Level 3 Subwoofers | 10" | 12" | 15" | 18" |
|---|---|---|---|---|
| Mounting Depth | 6.25" | 6.75" | 8" | 9.5" |
| Mounting Hole Diameter | 9.35" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11" | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" | 3.0" |
| Displacement | .15 ft | .16 ft | .18 ft | .22ft |
| Power Handling rms/peak | 1000/2000 | 1000/2000 | 1000/2000 | 1000/2000 |
| Ohm Options | d1/d2/d4 | d1/d2/d4 | d1/d2/d4 | d1/d2/d4 |
| Sd | 324 cm | 481 cm | 823 cm | 1217 cm |
| Vas | 13.16 L | 28.99 L | 84.88 L | 185.6 L |
| Cms | 0.09 Mm/n | 0.09 Mm/n | 0.09 Mm/n | 0.09 Mm/n |
| Mms | 190 g | 225 g | 295 g | 305 g |
| Fs | 38.5Hz | 35.4 Hz | 30.9 Hz | 30.4 Hz |
| Bl | 17.2 N/A | 17.2 N/A | 17.2 N/A | 17.2 N/A |
| Re | 3.6 Ohm | 3.6 Ohm | 3.6 Ohm | 3.6 Ohm |
| Le | 3.5 mH | 3.5 mH | 3.5 mH | 3.5 mH |
| Qms | 7.66 | 8.33 | 8.18 | 8.32 |
| Qes | 0.567 | 0.617 | 0.706 | 0.718 |
| Qts | 0.528 | 0.574 | 0.65 | 0.661 |
| Xmax | 23mm | 23mm | 23mm | 23mm |
| Ref SPL @1 watt | 83.1 db | 85 db | 87.3 db | 90.4 db |
| Suggest Sealed Box | .65 ft | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | 1.0 ft | 1.25 ft | 3.0 ft | 5.5 ft |
