Product Description

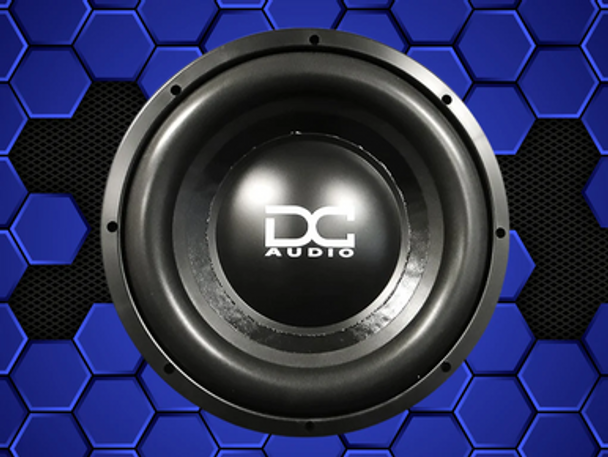

DC Audio m3 Level 2 Subwoofer
Sizes Available: 10 & 12 Inch Models
Ohms Available: D2 & D4 Models
Power Handling: 600 Watts RMS 1200 Watts Peak
With more power handling than before, the Level 2 is back and better than ever!
This sub has everything you need in a daily driver except the cost. This is one of our greatest accomplishments.
It starts out with a double stacked FEA optimized motor. A chrome top plate and T yoke to keep it looking good. It has 22 mm of X-Max, progressive spider, 2.5" voice coil, cast basket and push terminals.
This sub works great in sealed or ported enclosures.
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer wide roll foam surround
- Polypropylene dust cover with DC logo
- Dual 8" OD flat linear roll spiders
- Heavy duty interweaved tinsel lead wire sewn to the spider
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly - Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- Chrome spring loaded push terminals
- 2.5” Hi-temp copper voice coil wound on black anodized voice coil former
- Rubber magnet cover
| M3 Level 2 Subwoofers | 10" | 12" |
|---|---|---|
| Mounting Depth | 5.5" | 6.1" |
| Mounting Hole Diameter | 9.35" | 11.00" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 2.5" | 2.5" |
| Displacement | .12 ft | .14ft |
| Power Handling rms/peak | 600/1200 | 600/1200 |
| Ohm Options | d2/d4 | d2/d4 |
| Sd | 324 cm | 481 cm |
| Vas | 13.89 L | 30.6 L |
| Cms | 0.095 Mm/n | 0.095 Mm/n |
| Mms | 210 g | 245 g |
| Fs | 35.6 Hz | 33 Hz |
| Bl | 24 N/A | 24 N/A |
| Re | 7.2 Ohm | 7.2 Ohm |
| Le | 7 mH | 7 mH |
| Qms | 8.96 | 8.46 |
| Qes | 0.592 | 0.639 |
| Qts | 0.555 | 0.594 |
| Xmax | 22mm | 22mm |
| Ref SPL @1 watt | 82.1 db | 84.2 db |
| Suggest Sealed Box | .5 ft | .75 ft |
| Suggested Ported Box | 1.0 ft | 1.25 ft |
